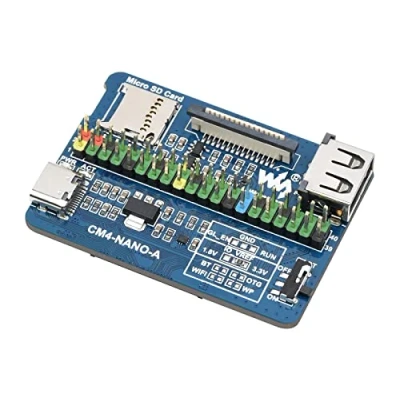

Waveshare Nano Base Board (A) for Raspberry Pi Compute Module 4, Same Size as CM4, with 1x 40PIN GPIO, USB 2.0 Type A, MIPI CSI 2 Port, 5V/ 2.5A C Power Supply Interface

Nano Base Board (A) for Compute Module 4 Lite/eMMC, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products Nano Base Board (A) for Compute Module 4 Lite/eMMC, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products Same size as the CM4, standard CM4 socket, with multiple peripheral interfaces, suitable for narrow application environment USB Type C interface can be used as a power supply or as a USB SLAVE interface to burn the image, in order to ensure the normal power supply of CM4, please do not connect other devices when using the Type C interface to burn the image USB2.0 is disabled by default, if you want to open it, you need to add the line dtoverlay=dwc2,dr_mode=host to the config.txt file DO NOT plug and unplug any device other than USB while it is powered on
