Schneider Electric LC1D12P7 Kontaktdon 440 V 12 A, Vit/svart

Proshop

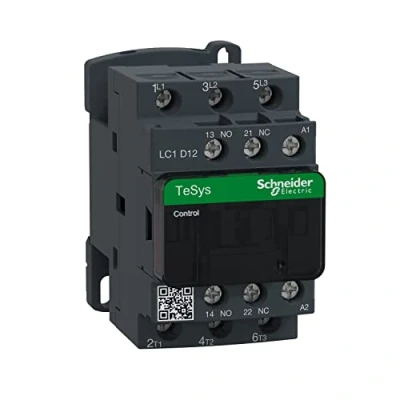

LC1D12P7 is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 5.5kW@400V. It includes a 230V 50/60Hz AC coil and 1NO+1NC built-in auxiliary contacts, it can be used in safety applications thanks to its certified NC mirror contact. Compact, DIN-rail mounting, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 45mm wide, for DIN-rail and panel mounting. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections . Equipped with a 230V AC coil that can be supplied at 50Hz or 60Hz. Provides 2 built-in auxiliary contacts 1NO + 1NC, NC is a certified mirror contact suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 12A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connections by screw clamp terminals

Amazon

Färg: Mörkgrå IP grad: IP20 infälld överensstämmer med IEC 60529 3 polig (1 slutande + 1 brytande hjälpkontakt), AC3 12A, 230VAC spole Nytt modernt utseende och känsla för alla maskiner Designad för att möta kraven för Electro-hem och HVAC-applikationer
