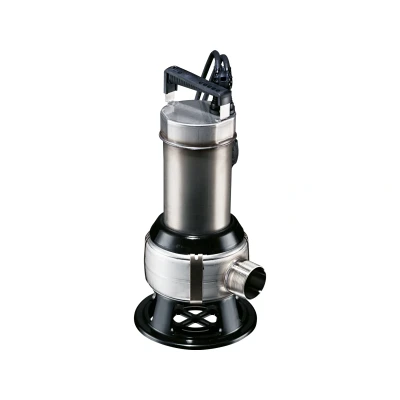

Grundfos unilift ap 35b 50.06.3v 3x400v 5m noplug

Unilift AP35B.50.06.3.VSubmersible effluent pumpVertical single-stage stainless steel submersiblepump with integrated submersible 3-phasemotor. The pump is fitted with ring stand and carryinghandle and is supplied with a 5 m mainscable. The impeller is a VORTEX impeller for35 mm free passage suitable for pumpingsurface water, groundwater, wastewater andsimilar.The pump has a double shaft seal and anintermediate oil chamber pre-filled with non-toxicspecial oil. The motor is insulation class F and has long-life deep-groove greased-for-life ball bearings.The pump has R 2' discharge port and is readyfor installation either free-standing or on anauto-coupling system. Liquid:Maximum liquid temperature:40 °CTechnical:Type of impeller:VORTEXMaximum particle size:35 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:R 2'Maximum installation depth:7 mElectrical data:Power input - P1:1 kWRated voltage:3 x 400 VRated current:1.55 ACos phi - power factor:0,89Rated speed:2830 rpmEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:5 mType of cable plug:NONEOthers:Net weight:8.22 kg
