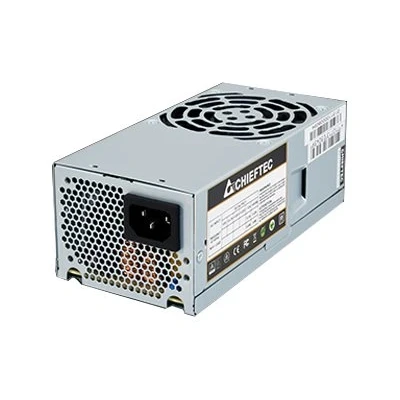

Chieftec Smart Series Strömförsörjning 350 W GPF-350P

Power supply delivering 350 W output with active PFC, 80 mm fan cooling and ATX/TFX compatibility. The Chieftec Smart Series power supply is an internal ATX unit with 85% efficiency and built-in protections against overvoltage, overload, undervoltage and short circuits. 350 W total output with +3.3 V, +5 V and dual +12 V rails Output currents: +5V 16 A; +3.3V 16 A; +12V1 15 A; +12V2 15 A; -12V 0.3 A; +5VSB 2 A Connectors: 24-pin ATX (with removable 4‑pin section), 1× ATX12V 4-pin, 2× 4‑pin Molex, 2× 15‑pin SATA power Input: AC 115-230 V, 47-63 Hz 80 mm cooling fan and power factor 0.9 Standards: TUV, CB, RoHS and ErP Ready Silver finish and standard form factor make it suitable for typical desktop systems that need reliable, protected power for drives and peripherals.

350 W SFX 12 V 2,3 effektivitet>85 % aktiv PFC (0,9) endast 230 V 2 x SATA; 2 x Molex; 1 x 4 PIN12 V; 1 x 24PINATX 80 mm tyst fläkt och säkerhet UVP, OVP, SCP, OPP, AFC
